Filtering

Filter controls

Add a filter panel when readers need to narrow what the dashboard shows themselves, with a control bound to a param that other panels read back in their queries.

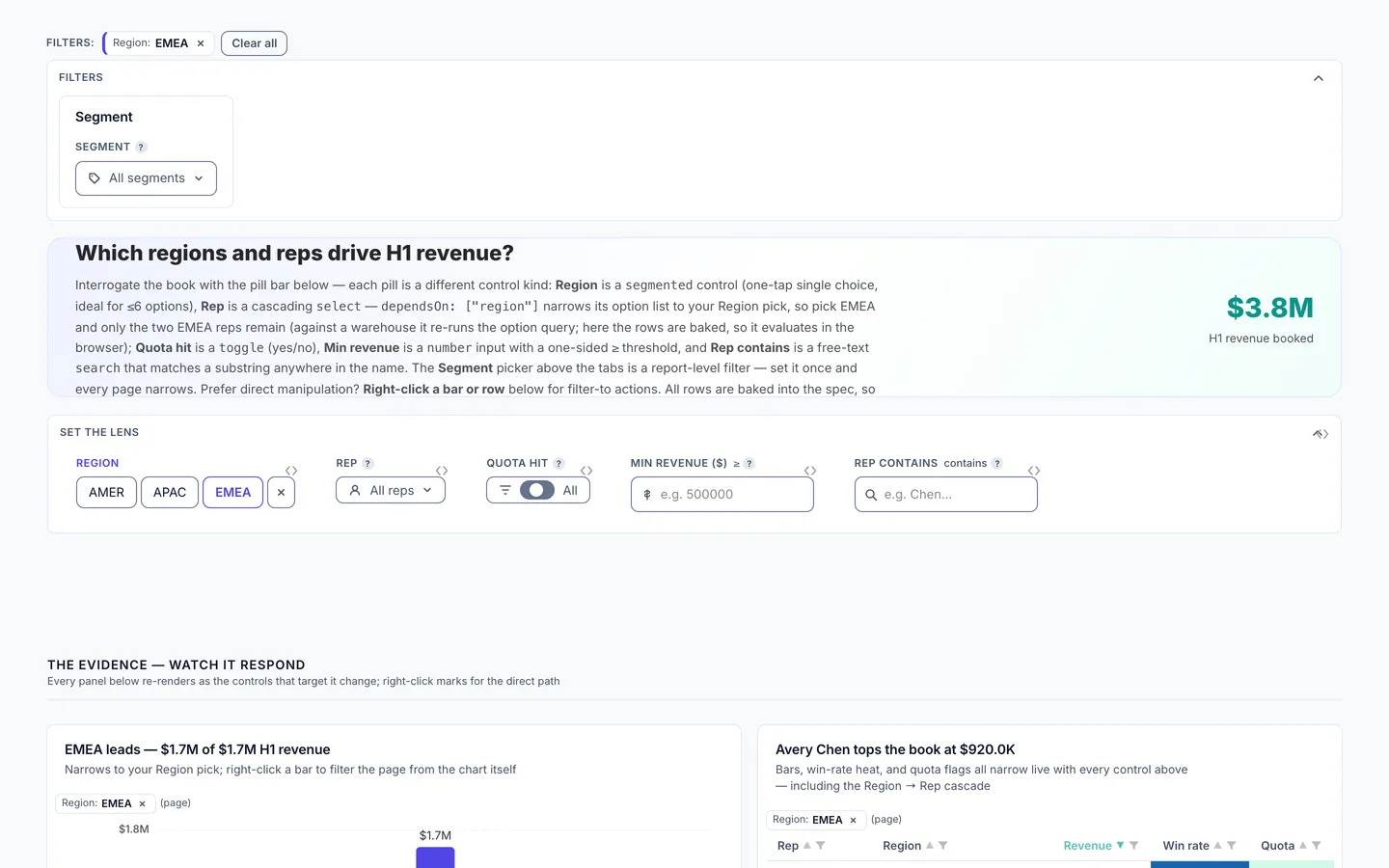

EMEA selected in the segmented region control, the "Region: EMEA" chip in the filter bar, and the evidence panels below carrying that same chip with their totals narrowed to EMEA

What you can do

A filter panel (type: filter) sets spec.control to one of 12 kinds: select, multiselect, date-range, number-range, search, toggle, number, segmented, radio, button-group, checkbox-list, or top-n.
valueField is required. It names the column the control reads its options or values from.
Single-value controls write param; the two range controls, date-range and number-range, write loParam and hiParam instead.
top-n adds measureField, n, and order: desc or asc; date-range supports relativeDate and presets; search takes operator and searchMode or searchParam.
targets is all, a list of panel ids, or an object with scope, pages, panels, mode, and bindings; each bindings[].mode can be filter, highlight, or none. dependsOn chains the control to upstream filters by param name (a parent's param, or a range parent's loParam/hiParam); see Cascading filters with dependsOn below.
default, values, label, placeholder, help, allLabel, unsetMode: omit or null, showOnPages, placement, width, and density shape the control; a filter panel cannot carry onClick.

Filters are panels themselves and target any data-bearing panel on the page. A filter panel cannot carry an onClick of its own.

Spec

View spec

[
  {
    "id": "region-filter",
    "type": "filter",
    "title": "Region",
    "data": {
      "query": "SELECT DISTINCT region FROM orders ORDER BY 1"
    },
    "spec": {
      "control": "select",
      "valueField": "region",
      "param": "region",
      "allLabel": "All regions",
      "targets": "all"
    }
  },
  {
    "id": "revenue-trend",
    "type": "chart:line",
    "title": "Revenue trend",
    "data": {
      "query": "SELECT order_month, SUM(amount) AS revenue FROM orders WHERE region = %(region)s GROUP BY 1 ORDER BY 1",
      "params": {
        "region": null
      }
    },
    "spec": {
      "categoryField": "order_month",
      "valueField": "revenue"
    }
  }
]

revenue-trend declares the region param with a null default and reads it via the %(region)s placeholder in its query. The value is bound, never string-interpolated.

Cascading filters with dependsOn

spec.dependsOn on a filter names PARAM NAMES — the parent filter's param, or a range parent's loParam/hiParam — never panel ids.
The child filter's own value-source query must still reference %(<param>)s with a null-guard, e.g. WHERE (region = %(region)s OR %(region)s IS NULL); dependsOn only wires the binding, it never rewrites the query.
dependsOn is sugar over the raw named-binding mechanism: once declared, the parent's targets entry for the child and the child's own data.params entry both become optional.
A dependency cycle of two or more filters — A depends on B depends on A, via dependsOn or the raw data.params binding — is rejected at save time with a 422.

View dependsOn spec

[
  {
    "id": "region-filter",
    "type": "filter",
    "title": "Region",
    "data": {
      "query": "SELECT DISTINCT region FROM orders ORDER BY 1"
    },
    "spec": {
      "control": "select",
      "valueField": "region",
      "param": "region"
    }
  },
  {
    "id": "customer-filter",
    "type": "filter",
    "title": "Customer",
    "data": {
      "query": "SELECT DISTINCT customer FROM orders WHERE (region = %(region)s OR %(region)s IS NULL) ORDER BY 1"
    },
    "spec": {
      "control": "select",
      "valueField": "customer",
      "param": "customer",
      "dependsOn": [
        "region"
      ]
    }
  }
]

Golden example: spec/examples/filter-cascading-dependson.json. The raw long-hand this desugars from — listing the child filter in the parent's targets plus an explicit data.params: {"region": null} entry on the child — still works.

Try it live

Open the interactive-filters template in the Builder

Open interactive-filters and pick a region on the segmented Region control, fv2-region-chromeless, to see the bar chart and the deals table re-query for that region.
