Media

Add a media panel when a page needs a photo, logo, or diagram from an allowed host or an inline raster.

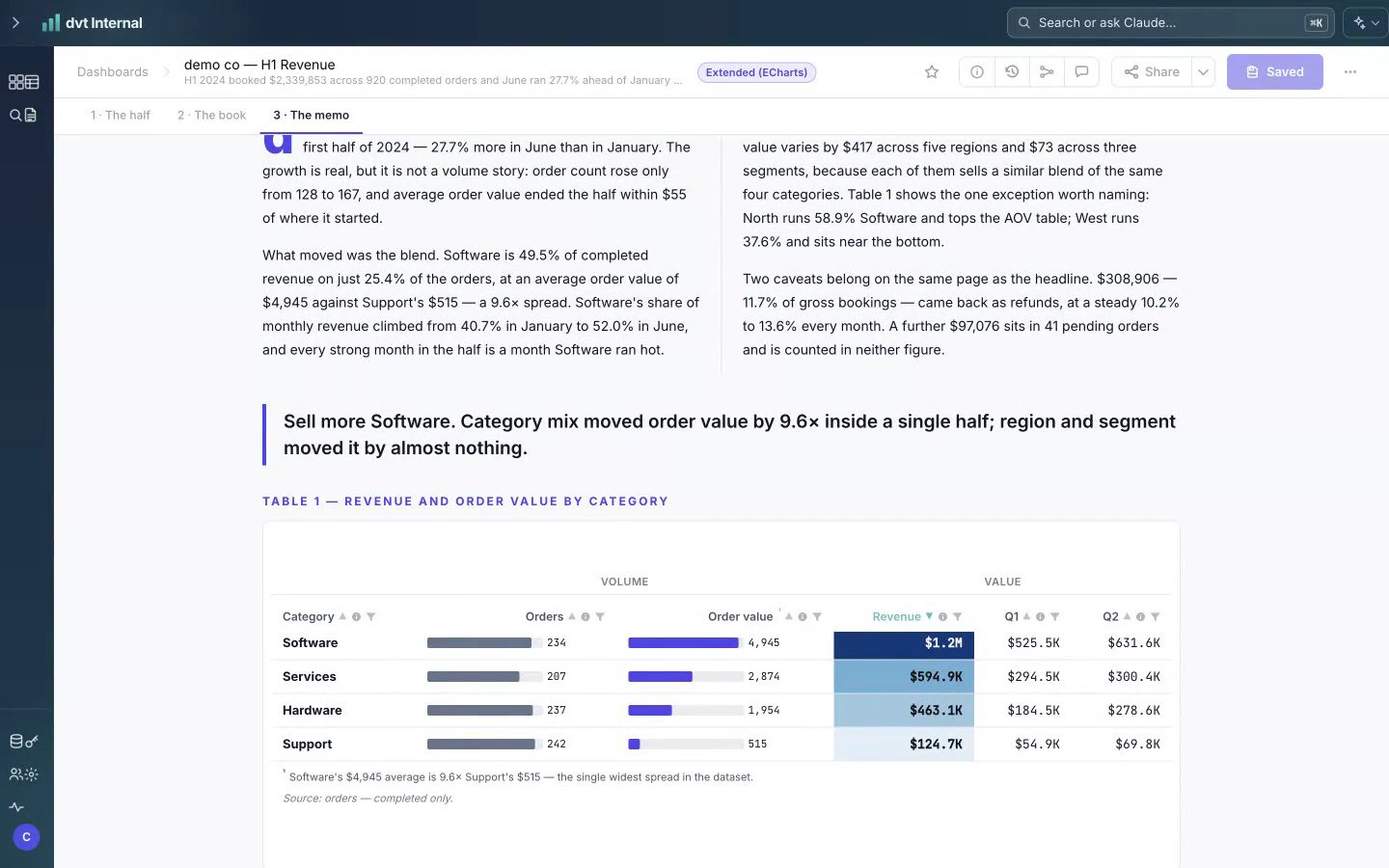

A page of a dvt dashboard: two columns of prose, a pull-quote, and a revenue table with in-cell bars — A page from a dvt dashboard.

What you can do

src is not free-form: only a same-origin path, an https URL on a dvt-controlled asset host (dvt.dev, assets.dvt.dev), or an inline raster data: URI (png, jpeg, gif, webp, avif) is allowed; anything else renders empty.
fit is cover (default), contain, or fill; rounded is true (12px), a number of pixels, or false.
alt is the accessible description; caption renders beneath the image.

Applies to a media panel only; it carries no data block and accepts no onClick.

Spec

View spec

{
  "id": "cover-photo",
  "type": "media",
  "title": "",
  "spec": {
    "src": "https://dvt.dev/demo/dvt-demo-poster.jpg",
    "alt": "A page of a dvt dashboard: two columns of prose, a pull-quote, and a revenue table with in-cell bars",
    "fit": "cover",
    "rounded": 12,
    "caption": "A page from a dvt dashboard."
  }
}

The image comes from dvt.dev, an allowlisted host; fit: "cover" fills the panel and rounded: 12 equals the radius rounded: true would give.

Try it live

Open the feature-tour template in the Builder

Open the feature-tour template, page chart-library, panel ft-media for a media panel that carries its image as an inline data: raster.
